Wunderwunsch.HexMapLibrary.HexGrid.GetEdges Class Reference

Static Public Member Functions
static List< Vector3Int >	OfTile (Vector3Int tile)
	returns the 6 edges of a tile More...
static List< Vector3Int >	AdjacentToEdge (Vector3Int edge)
	returns the 4 edges which are adjacent to an edge More...
static List< Vector3Int >	AdjacentToCorner (Vector3Int corner)
	returns the 3 edges which share the input corner More...
static List< Vector3Int >	WithinDistanceOfEdge (Vector3Int centerEdge, int maxDistance, bool includeCenter)
	returns all edges with are within the specified range of the input edge (either with or without the center itself) More...
static List< Vector3Int >	WithinDistanceOfCorner (Vector3Int centerCorner, int maxDistance)
	returns all edges with are within the specified range of the input corner More...
static List< Vector3Int >	AtExactDistance (Vector3Int centeredge, int distance)
	returns all the edges with are exactly at the specified distance of the input edge More...
static List< Vector3Int >	PathBetweenCorners (Vector3Int originCorner, Vector3Int targetCorner, float horizontalNudgeFromOriginCenter=NudgePositive)
	returns the shortest path of edges from origin to target corner More...
static List< Vector3Int >	TileBorders (IEnumerable< Vector3Int > tiles)
	returns all the border edges of a set of tiles. More...
static List< List< Vector3Int > >	BorderPaths (IEnumerable< Vector3Int > tiles, out List< List< EdgeDirection >> pathDirections)
	returns all the border paths of one contiguous Area. Outer path is clockwise, others are counterclockwise More...

Member Function Documentation

OfTile()

static List<Vector3Int> Wunderwunsch.HexMapLibrary.HexGrid.GetEdges.OfTile ( Vector3Int  tile )

static

returns the 6 edges of a tile

yellow = input tile , blue = result

AdjacentToEdge()

static List<Vector3Int> Wunderwunsch.HexMapLibrary.HexGrid.GetEdges.AdjacentToEdge ( Vector3Int  edge )

static

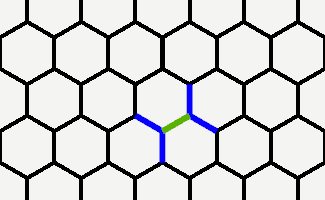

returns the 4 edges which are adjacent to an edge

green = input edge , blue = result

AdjacentToCorner()

static List<Vector3Int> Wunderwunsch.HexMapLibrary.HexGrid.GetEdges.AdjacentToCorner ( Vector3Int  corner )

static

returns the 3 edges which share the input corner

green = input corner , blue = result

WithinDistanceOfEdge()

static List<Vector3Int> Wunderwunsch.HexMapLibrary.HexGrid.GetEdges.WithinDistanceOfEdge ( Vector3Int  centerEdge, int  maxDistance, bool  includeCenter  )

static

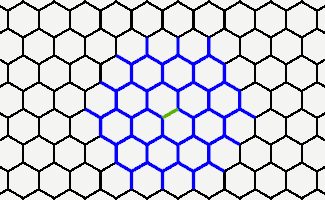

returns all edges with are within the specified range of the input edge (either with or without the center itself)

green = input edge , blue = result

WithinDistanceOfCorner()

static List<Vector3Int> Wunderwunsch.HexMapLibrary.HexGrid.GetEdges.WithinDistanceOfCorner ( Vector3Int  centerCorner, int  maxDistance  )

static

returns all edges with are within the specified range of the input corner

green = input corner , blue = result

AtExactDistance()

static List<Vector3Int> Wunderwunsch.HexMapLibrary.HexGrid.GetEdges.AtExactDistance ( Vector3Int  centeredge, int  distance  )

static

returns all the edges with are exactly at the specified distance of the input edge

green = input corner , blue = result

PathBetweenCorners()

static List<Vector3Int> Wunderwunsch.HexMapLibrary.HexGrid.GetEdges.PathBetweenCorners ( Vector3Int  originCorner, Vector3Int  targetCorner, float  horizontalNudgeFromOriginCenter = NudgePositive  )

static

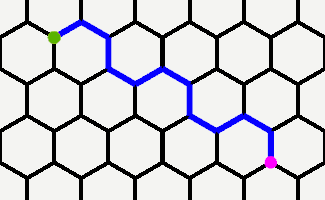

returns the shortest path of edges from origin to target corner

green = origin corner , purple = target corner, blue = result

TileBorders()

static List<Vector3Int> Wunderwunsch.HexMapLibrary.HexGrid.GetEdges.TileBorders ( IEnumerable< Vector3Int >  tiles )

static

returns all the border edges of a set of tiles.

green = input tiles , blue = result

BorderPaths()

static List<List<Vector3Int> > Wunderwunsch.HexMapLibrary.HexGrid.GetEdges.BorderPaths ( IEnumerable< Vector3Int >  tiles, out List< List< EdgeDirection >>  pathDirections  )

static

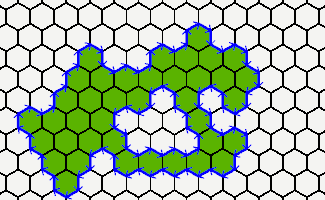

returns all the border paths of one contiguous Area. Outer path is clockwise, others are counterclockwise

green = input tiles , blue = result
