Static Public Member Functions | |
| static List< Vector3Int > | Disc (Vector3Int center, int radius, bool includeCenter) |
| Returns all Tiles which are within distance of the center point, either with or without the center point More... | |
| static List< Vector3Int > | Ring (Vector3Int center, int radius, int ringThicknessInwards) |
| returns all tiles of a ring around center in no defined order More... | |
| static List< Vector3Int > | Ring (Vector3Int center, int radius, TileDirection startDirection=TileDirection.TopRight, bool clockwise=true) |
| returns all tiles of a ring around center in order specified by parameters (startDirection, clockwise) More... | |
| static List< Vector3Int > | Cone (Vector3Int origin, Vector3Int targetDirection, float coneWidthHalfAngle, int coneLength) |
| returns all tiles of a cone starting at a point with given direction, length and width More... | |
| static List< Vector3Int > | Line (Vector3Int origin, Vector3Int target, bool includeOrigin, float horizontalNudgeFromOriginCenter=NudgePositive) |
| returns tiles forming a line between origin and target tile, optionally including the origin tile itself More... | |
| static List< Vector3Int > | AdjacentToTile (Vector3Int center) |
| returns the tiles directly neigbouring the input tile More... | |
| static List< Vector3Int > | AdjacentToEdge (Vector3Int edge) |
| returns the tiles adjacent to the input edge More... | |
| static List< Vector3Int > | AdjacentToCorner (Vector3Int corner) |
| returns the tiles adjacent to the input corner More... | |
| static List< List< Vector3Int > > | ContiguousAreasOfInputTiles (ICollection< Vector3Int > inputTiles) |
| splits the input collection into 1 List for each contiguous area formed by the input tile coordinates. More... | |
Member Function Documentation
◆ Disc()
|
static |
Returns all Tiles which are within distance of the center point, either with or without the center point

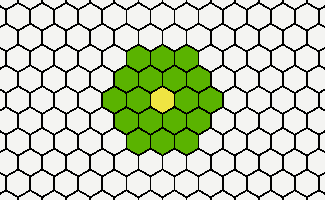

yellow = origin , green = disc tiles, when includeCenter = true the origin is part of the disc
◆ Ring() [1/2]
|
static |
returns all tiles of a ring around center in no defined order

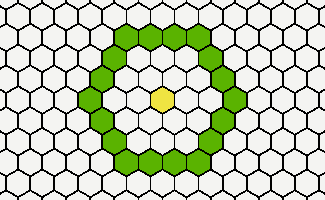

yellow = origin , green = ring tiles
◆ Ring() [2/2]
|
static |
returns all tiles of a ring around center in order specified by parameters (startDirection, clockwise)
◆ Cone()
|
static |
returns all tiles of a cone starting at a point with given direction, length and width

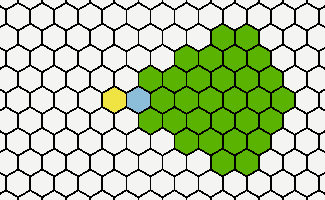

yellow = origin , blue = direction, green/blue = cone tiles
◆ Line()
|
static |
returns tiles forming a line between origin and target tile, optionally including the origin tile itself
TODO: explain nudge
yellow = origin , blue = target, yellow/blue = line, when includeOrigin = true the origin belongs is part of the line
◆ AdjacentToTile()
|
static |
returns the tiles directly neigbouring the input tile

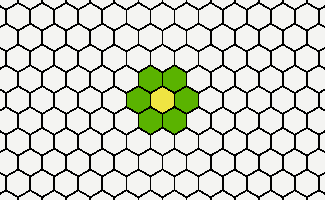

yellow = origin, green = adjacent tiles
◆ AdjacentToEdge()
|
static |
returns the tiles adjacent to the input edge
yellow = input edge, green = adjacent tiles
◆ AdjacentToCorner()
|
static |
returns the tiles adjacent to the input corner
yellow = input corner , green = adjacent tiles
◆ ContiguousAreasOfInputTiles()
|
static |
splits the input collection into 1 List for each contiguous area formed by the input tile coordinates.
left = input tile list , right = output separated into different areas
